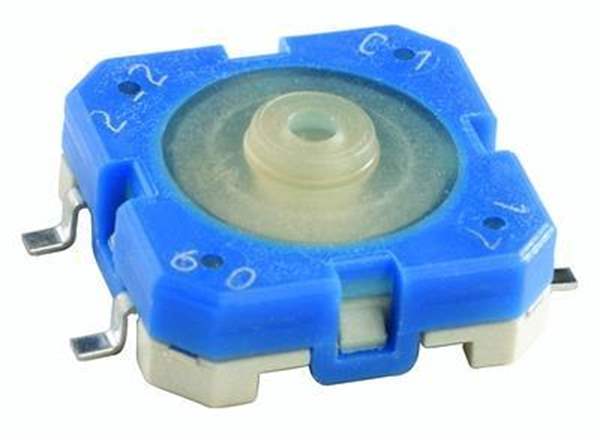

Same model may have multiple batches, images only for reference.

1.14.012.503/0000

Name: 1.14.012.503/0000
Brand: RAFI USA
SKU: WS1311757
Availability: InStock

Quick Quote

Part No	1.14.012.503/0000
Manufacturer	RAFI USA
Catalog	Switches
Description	Tactile Switches RACON 12 Tactile switch SMT 3.6 N
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your List. List Name:
Need Help

Products specifications Report Issue?

Manufacturer	RAFI
Illuminated	Non-Illuminated
Mounting Style	SMD/SMT
Mounting Direction	Straight
Stem Height	1.1 mm
Actuator	Round
Switch Function	OFF - (ON)
Operating Force	3.6 N
Current Rating	100 mA
Voltage Rating DC	35 VDC
Power Rating	1 W
Ground Terminal	No
Contact Form	SPST
Termination Style	Gull Wing Lead
Color	Clear
Length	12 mm
Width	12 mm
Height	4.95 mm
Series	RACON 12
Life	1000000 Cycle
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Brand	RAFI
Product Type	Tactile Switches
Standard Pack Qty	750
Subcategory	Switches
Tradename	RACON
SnapMagic 3D Model
Ultra Librarian 3D Model	Symbol, Footprint, 3D Model
